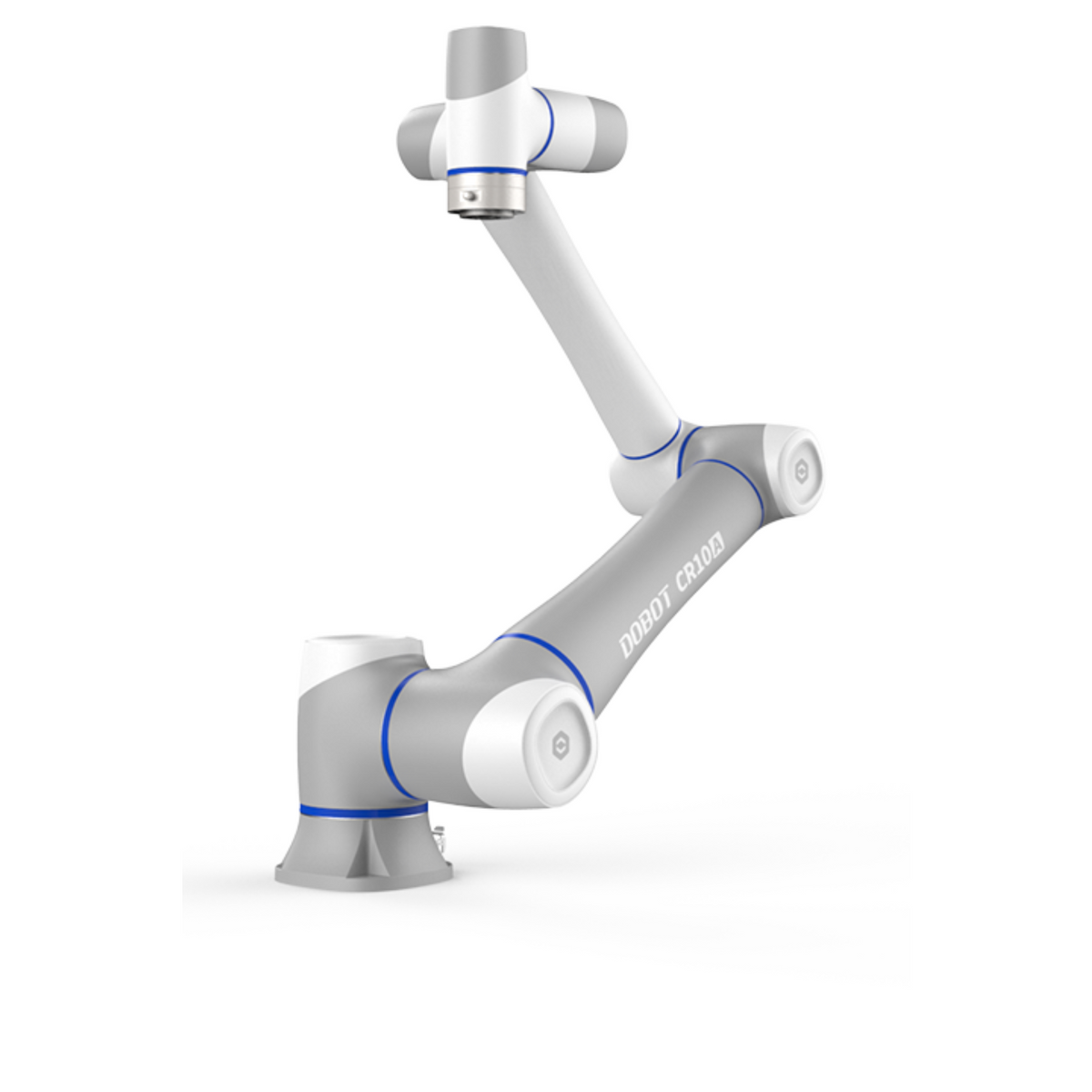

Dobot CR10A six-axis collaborative robot arm with 10 kg payload and 1300 mm reach

Product Description

When a palletizing or machine-tending cell is throttled by a robot that cannot reach across a full pallet or lift a loaded carton, cycle times slip and operators step in to bridge the gap. The Dobot CR10A collaborative robot closes that gap with a 10 kg payload and a 1300 mm reach, giving automation engineers and integrators a mid-payload, long-reach 6-axis cobot sized for larger work envelopes. It is built for plant and automation managers who need dependable throughput on palletizing, packaging, machine-tending, and material-handling tasks without the guarding and footprint of a traditional industrial arm.

With ±0.03 mm repeatability and a collaborative design rated to ISO 13849-1 (PL d, Cat. 3), the CR10A holds placement accuracy shift after shift while running alongside people, so you recover labor hours and keep lines moving.

Key Benefits

  • Cover a larger work envelope from one position — with 10 kg payload and 1300 mm reach, a single arm services wide conveyors, full pallets, or several machines without repositioning, reducing the number of cells you deploy and outreaching shorter-arm cobots. Whether one position builds a full pallet layer depends on your mount point and cell geometry, which we size with you during integration planning.
  • Keep lines running at pace — fast axis dynamics, with linear (Cartesian) moves up to 2 m/s, deliver short cycle times for high-throughput packaging and end-of-line work.
  • Hold tight placement tolerances — ±0.03 mm repeatability supports precise assembly, pick-and-place, and insertion where parts must seat consistently.
  • Run beside operators without fencing — a collaborative design rated to ISO 13849-1 (PL d, Cat. 3) supports operation alongside people, subject to your risk assessment, and saves floor space on constrained lines.
  • Drop into existing automation — Modbus TCP, EtherNet/IP, PROFINET, EtherCAT, and TCP/IP support ties the arm to your PLCs and line controls, and end-of-arm digital I/O (DI/DO) wires up grippers and sensors directly.
  • Work in demanding environments — IP54 ingress protection and a 0°C to 50°C operating range suit it to dusty packaging rooms and warm production areas.

Ideal Applications

  • Palletizing and depalletizing pallet layers at end-of-line.
  • Packaging, case packing, and carton loading across wide conveyors.
  • Machine tending for CNC, injection molding, and press cells.
  • Assembly, pick-and-place, and material handling of mid-weight parts.

Specifications

Type Collaborative robot
Degrees of freedom 6 (six-axis)
Payload 10 kg
Reach 1300 mm
Repeatability ±0.03 mm
Positioning accuracy (absolute) <0.4 mm
Weight 40 kg
Max linear (Cartesian) speed 2 m/s
Joint speeds J1/J2 150°/s, J3 180°/s, J4–J6 223°/s
Power consumption 350 W
Communication / IO Modbus TCP, EtherNet/IP, PROFINET, EtherCAT, TCP/IP; end-of-arm digital I/O (DI/DO)
Ingress protection IP54
Operating temperature 0°C to 50°C
Safety ISO 13849-1 (PL d, Cat. 3)
Country of origin China

Frequently Asked Questions

What is the payload of the Dobot CR10A?

The CR10A has a 10 kg payload, placing it in the mid-payload tier of the CR-A series and suiting it to heavier cartons, layer palletizing, and loaded end-effectors.

How far can the CR10A reach?

Its 1300 mm reach covers larger work envelopes, letting a single arm service wide conveyors, pallets, or multiple machines from one position.

How repeatable is it?

Repeatability is ±0.03 mm, which supports consistent placement in assembly, insertion, and precise pick-and-place tasks.

How fast is the CR10A?

The maximum linear (Cartesian) move speed is up to 2 m/s; individual joint speeds run to 150°/s on J1/J2, 180°/s on J3, and 223°/s on J4–J6. Effective speed on your line depends on payload, trajectory, and reach, which we help tune to your target cycle.

Can the CR10A be wall- or ceiling-mounted?

Yes. Like other CR-A series cobots it supports floor, wall, and inverted (ceiling) mounting, so you can site it over a conveyor or pallet to make the most of the 1300 mm reach. Confirm the orientation and any mounting-specific payload or speed limits for your cell with us during integration planning.

Does payload or performance derate at full reach or high speed?

The CR10A is rated for 10 kg within its specified work envelope, and ±0.03 mm repeatability is quoted under Dobot's standard test conditions. For moves at full 1300 mm extension or near its maximum rated speed, confirm the effective payload and dynamic limits for your end-effector and trajectory with a load assessment — we can help size this to your target cycle.

How is the CR10A programmed?

It uses Dobot's robot programming software with hand-guided (drag-to-teach) setup and a graphical, block-based environment for building routines, plus scripting for more advanced logic. Hand-guiding lets operators teach waypoints directly, which shortens deployment on tending and palletizing jobs.

Is the CR10A safe to run next to people?

Yes. It is a collaborative robot rated to ISO 13849-1 (PL d, Cat. 3), enabling operation alongside operators subject to your risk assessment.

What controllers and devices can it connect to?

It supports Modbus TCP, EtherNet/IP, PROFINET, EtherCAT, and TCP/IP for PLC and line integration, plus end-of-arm digital I/O (DI/DO) for grippers and sensors.

What is the typical lead time and what support is included?

Lead time depends on current stock and configuration, so contact us for a quote with up-to-date availability. Robo Mechanix supports specification, end-effector and I/O selection, PLC connectivity, and commissioning, and stays available for support afterward.

Why Buy From Robo Mechanix

  • Automation specialists, not a general reseller — we focus on collaborative and industrial robots, so you work with people who know cobot integration.
  • Right-fit guidance — we confirm the CR10A matches your payload and reach, or point you to a better-fit model if it does not.
  • Integration support — we help plan end-effector and I/O wiring, PLC connectivity, and mounting, and stay responsive through commissioning and beyond.
  • Clear next step — request a quote and we respond with availability and integration advice for your cell.

Need a smaller arm or more payload? Compare the Dobot CR5A collaborative robot and the Dobot CR16AL collaborative robot, or browse all Dobot robots.
