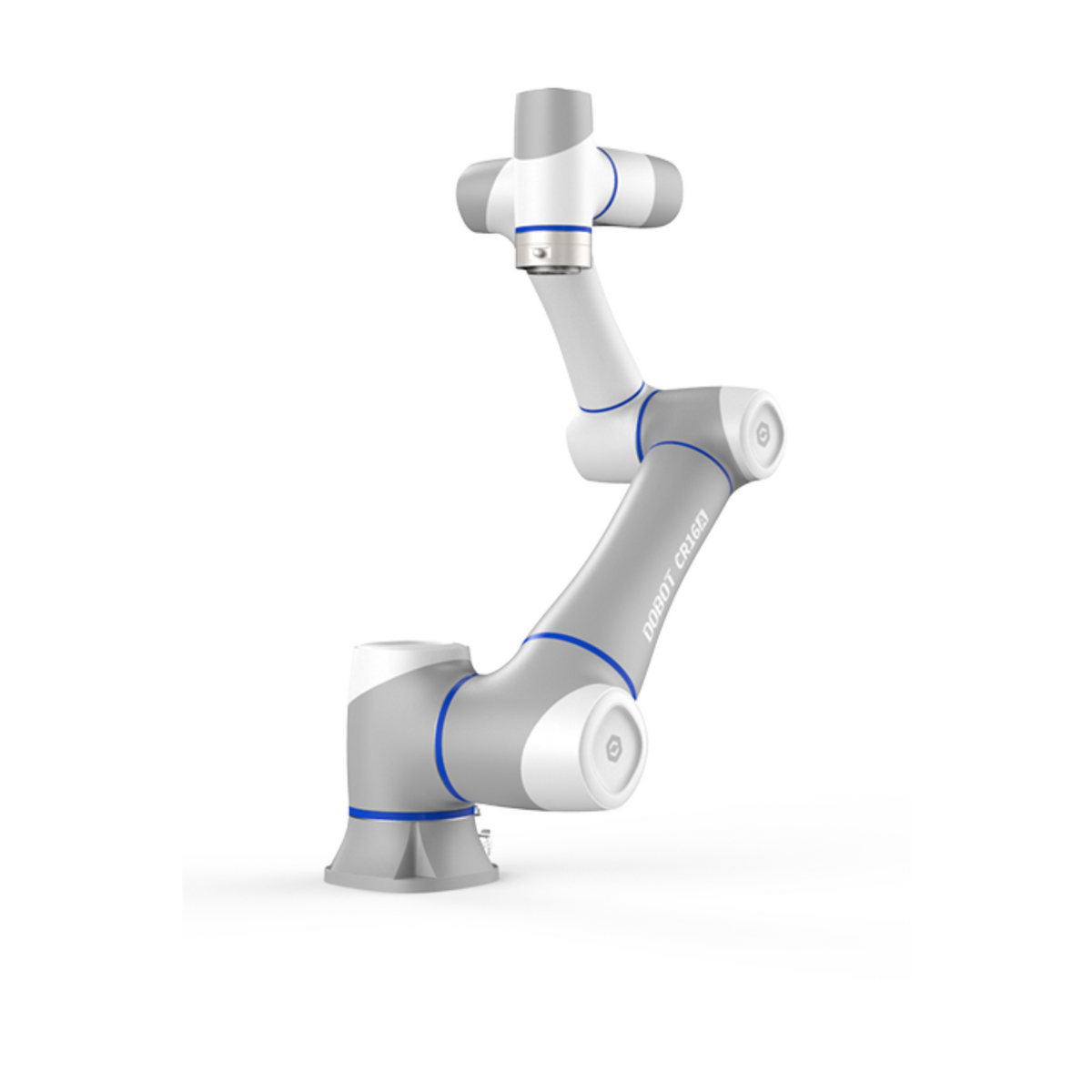

Dobot CR16AL long-reach collaborative robot with 16 kg payload, 1300 mm reach

Product Description

The Dobot CR16AL collaborative robot is the long-reach "AL" variant of the CR-A series, pairing a 16 kg payload with an extended 1300 mm working radius. Built for engineers and integrators tackling press tending, palletizing, and heavier material handling, it brings a bigger payload to the outer edge of its envelope so one arm covers machines and pallets that shorter cobots cannot. With certified collaborative safety, it is designed to work right alongside operators.

Key Benefits

  • Heavier payload at long reach — a 16 kg payload across a 1300 mm radius lets a single arm tend presses and transfer heavier parts without repositioning the robot or adding conveyors.
  • Tight, repeatable placement — plus or minus 0.04 mm repeatability keeps machine-tending and insertion tasks consistent part after part.
  • Fast cycle throughput — up to 4 m/s TCP speed shortens pick-and-place and palletizing cycles on high-volume lines.
  • Dust- and splash-tolerant arm — an IP54-rated arm (IP20 control box) suits general machine shops and press areas where fine debris and the occasional splash are present.
  • Fits existing networks — native PROFINET and EtherNet/IP let integrators drop the cobot straight into PLC-controlled cells and press lines.
  • Mount it anywhere in the cell — installation at any angle means floor, wall, or inverted overhead mounting to reach awkward press and fixture layouts.

Ideal Applications

  • Press tending and stamping-line load/unload
  • Palletizing and depalletizing of heavier cartons and parts
  • CNC and injection-molding machine tending
  • Heavy material handling and part transfer
  • Assembly and insertion across a wide work envelope

Specifications

Type 6-axis collaborative robot (CR-A series, AL long-reach variant)
Payload 16 kg
Reach (working radius) 1300 mm
Degrees of freedom 6
Repeatability plus or minus 0.04 mm
Weight 40 kg
Max linear (TCP) speed 4 m/s
IP rating IP54 (robot arm); IP20 (control box)
Operating temperature 0 to 50 C
Communication PROFINET and EtherNet/IP
Installation Any angle

Frequently Asked Questions

What payload can the Dobot CR16AL handle?

The CR16AL handles a 16 kg payload, making it well suited to heavier press tending, palletizing, and material-handling tasks that lighter cobots cannot manage.

How far can the CR16AL reach?

It has a 1300 mm working radius. As the long-reach "AL" variant, it carries its full 16 kg payload to the outer edge of the envelope, so one arm can serve machines and pallets spaced further apart.

How precise and repeatable is it?

Repeatability is plus or minus 0.04 mm, which keeps machine-tending, insertion, and placement tasks consistent across long production runs.

Is it safe to work alongside people?

Yes. The CR16AL is a collaborative robot designed for operation next to personnel, so it can be deployed in shared workspaces with appropriate risk assessment rather than behind full guarding.

How is it programmed and mounted?

It communicates over PROFINET and EtherNet/IP for integration with PLC-controlled cells, and it installs at any angle, including floor, wall, and inverted overhead mounting.

Why Buy From Robo Mechanix

  • Specialists in Dobot collaborative robots, with application guidance from engineers who know the CR-A series.
  • Clear, verified specifications so you can size the right cobot for your cell before you buy.
  • US-based support for quoting, integration questions, and after-sale help.

Comparing models? See the Dobot CR10A collaborative robot and the Dobot CR20A collaborative robot, or browse all Dobot robots.
