Dobot CR20A high-payload collaborative robot arm for palletizing and heavy handling

Product Description

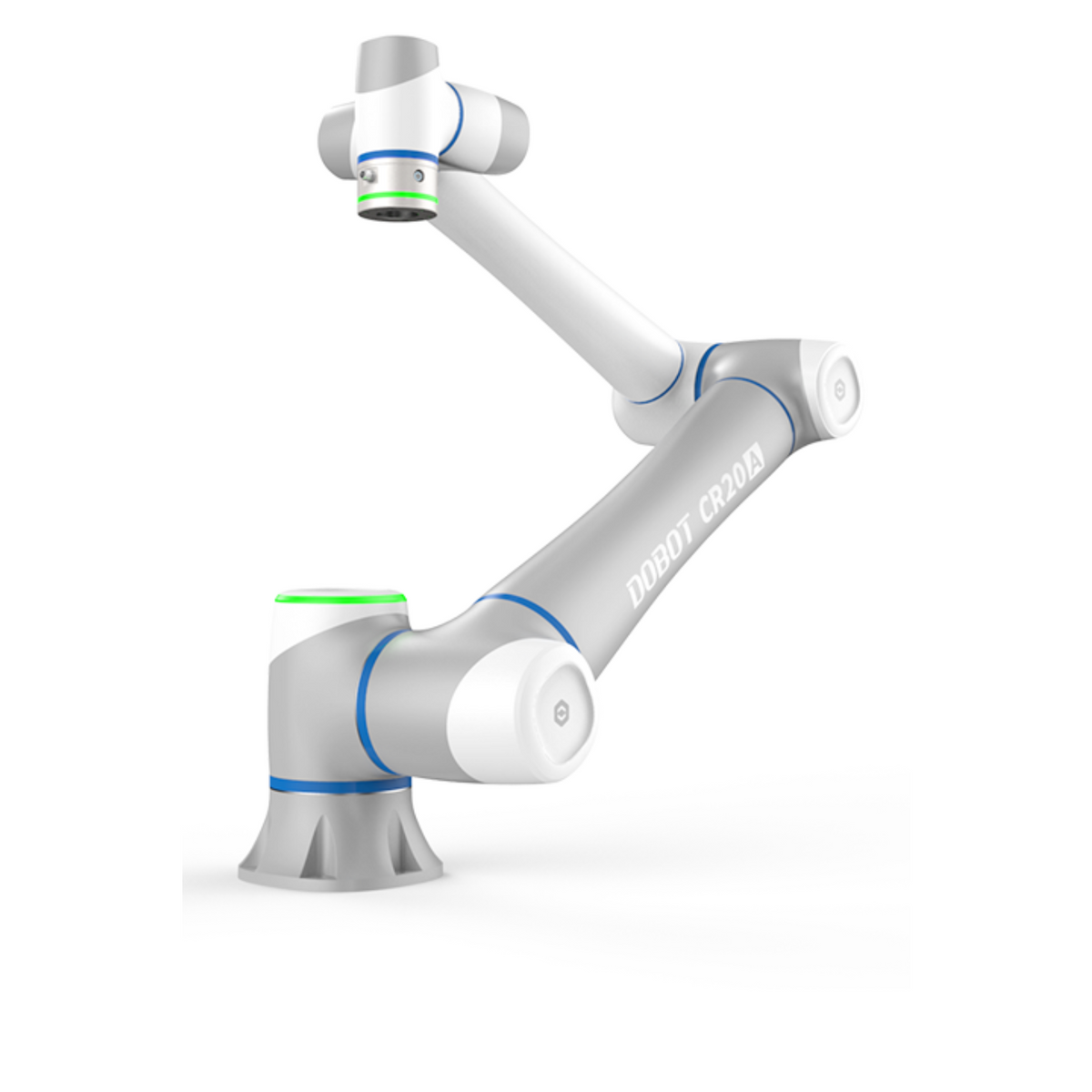

The Dobot CR20A collaborative robot is a high-payload 6-axis cobot built for engineers and integrators who need to automate heavy handling across a large work envelope. With a 20 kg payload and an extended 1700 mm reach, it is purpose-made for palletizing and large-envelope material handling where smaller cobots run out of capacity or reach. It combines collaborative-grade safety with the repeatability and speed that production lines demand.

Key Benefits

  • Lift full cases and stack taller pallets with a 20 kg payload, so a single cobot can palletize heavier cartons without a dedicated gantry.
  • Cover a wider workspace thanks to the 1700 mm reach, letting one arm tend multiple machines or build out deep pallet patterns from a fixed base.
  • Hold tight part placement with +/-0.05 mm repeatability, ideal for precise machine tending and assembly feeding where misplacement scraps parts.
  • Keep cycle times short with a 2 m/s maximum TCP speed, moving finished goods between conveyors and pallets at production pace.
  • Deploy almost anywhere with IP54 arm protection and any-angle installation, so you can mount it on a wall, ceiling, or angled frame to fit crowded cells.
  • Drive end-of-arm tooling directly via 4 digital inputs, 4 digital outputs, and 4 analog outputs at the wrist, simplifying gripper and sensor wiring on handling tools.

Ideal Applications

  • Palletizing and depalletizing of cases and cartons up to 20 kg
  • Heavy material handling and part transfer across large work cells
  • CNC, press, and injection machine tending over a wide envelope
  • Line loading and unloading between conveyors and fixtures
  • Pick-and-place of bulky components in assembly operations

Specifications

Type 6-axis collaborative robot (CR-A series)
Payload 20 kg
Reach (working radius) 1700 mm
Degrees of freedom 6
Repeatability +/-0.05 mm
Weight 73 kg
Max linear (TCP) speed 2 m/s
IP rating IP54 (robot arm); IP20 (control box)
Operating temperature 0 to 50 C
End-effector I/O 4 digital inputs / 4 digital outputs / 4 analog outputs
Installation Any angle

Frequently Asked Questions

What is the maximum payload of the Dobot CR20A?

The CR20A handles a 20 kg payload, giving it the capacity to lift full cases, heavier workpieces, and larger grippers that lighter cobots cannot support.

How far can the CR20A reach?

Its working radius is 1700 mm, an extended reach that lets a single arm service a large pallet footprint or multiple machines from one fixed position.

How repeatable and precise is it?

The CR20A delivers +/-0.05 mm repeatability, which supports accurate machine tending, assembly feeding, and placement tasks where consistent positioning matters.

Is the CR20A safe to work alongside people?

Yes. As a collaborative robot in the CR-A series, it is designed for human-robot collaboration so it can operate near operators, subject to your site risk assessment.

How is it mounted and programmed?

The CR20A supports installation at any angle, including floor, wall, ceiling, and angled mounts, and uses Dobot's cobot programming environment for fast, hand-guided and graphical setup.

Why Buy From Robo Mechanix

  • We specialize in collaborative and industrial robots, so you get application-focused guidance, not a generic catalog.
  • Specifications are verified against manufacturer data before they reach your quote, reducing surprises at integration.
  • US-based support helps you match payload, reach, and mounting to your actual cell before you commit.

Compare related models: the Dobot CR16AL collaborative robot for lighter high-reach work, the Dobot CR30H heavy-payload collaborative robot for the heaviest loads, or browse all Dobot robots.
