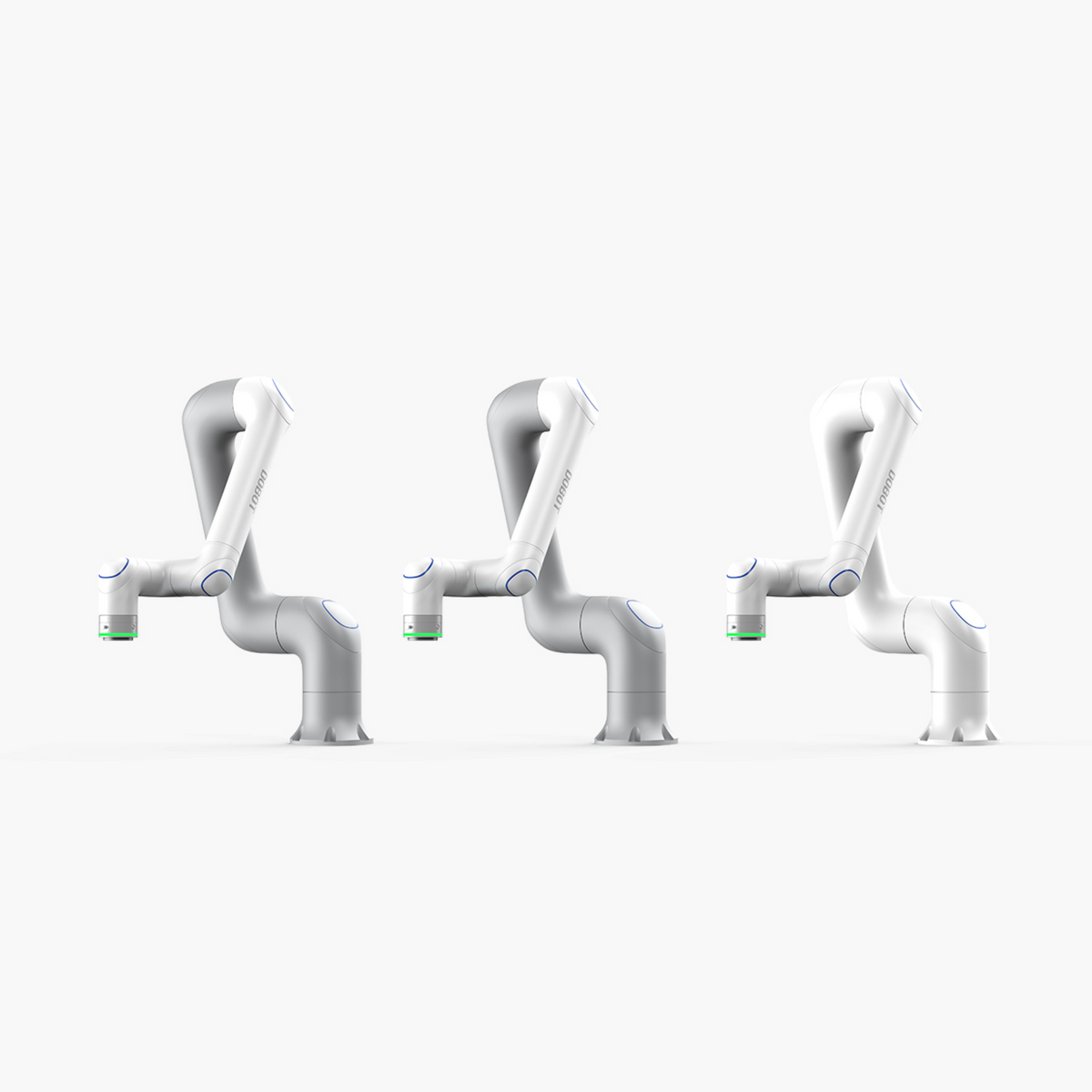

Dobot CR30H heavy-payload collaborative robot with 30 kg payload and 1800 mm reach

Product Description

The Dobot CR30H heavy-payload collaborative robot is the flagship Standard Edition cobot, pairing a 30 kg payload with an 1800 mm working radius. Built for engineers and integrators automating heavy palletizing, machine tending, and large-part handling, it brings the reach and lifting capacity of an industrial arm into a collaborative footprint. It is the heaviest-lifting model in the Dobot CR series, making it the right choice when lighter cobots run out of capacity.

Key Benefits

  • Palletize full cases and sacks in one cobot: the 30 kg payload handles end-of-line palletizing loads that smaller arms cannot lift.
  • Cover a full pallet or large machine from one base: the 1800 mm reach spans wide pallet patterns and reaches deep into CNC and press enclosures for heavy machine tending.
  • Place heavy parts precisely: ±0.05 mm repeatability keeps stacked layers and fixture loading consistent across long palletizing and assembly runs.
  • Run in demanding environments: an IP67-rated robot body stands up to dust and moisture in foundries, packaging lines, and washdown-adjacent cells.
  • Move fast through the work envelope: joint speeds up to 300°/s on the wrist axes help keep cycle times short on repetitive pick-and-place.
  • Fit tight and overhead layouts: floor, wall, or ceiling mounting lets integrators position the arm to suit the cell and free up floor space.

Ideal Applications

  • Heavy palletizing and depalletizing of cases, cartons, and sacks
  • Machine tending for CNC, injection molding, and press lines
  • Large and heavy part handling and transfer
  • Bin unloading and material movement in packaging and logistics
  • Assembly support where high payload and long reach are required

Specifications

Type 6-axis heavy-payload collaborative robot (Standard Edition)
Payload 30 kg
Reach (working radius) 1800 mm
Degrees of freedom 6
Repeatability ±0.05 mm
Weight 98.5 kg
Joint ranges J1 ±360°, J2 ±360°, J3 ±163°, J4 ±360°, J5 ±360°, J6 ±360°
Joint speeds J1/J2 150°/s, J3 200°/s, J4/J5/J6 300°/s
End-effector I/O 2 DI / 2 DO / 2 AO
Ingress protection IP67 (robot body)
Operating temperature 0°C to 50°C
Installation Floor, wall, or ceiling
Robot-to-controller cable 6 m

Frequently Asked Questions

What is the payload of the Dobot CR30H?

The CR30H has a 30 kg payload, the highest in the Dobot CR collaborative series. That capacity makes it suited to heavy palletizing and tending larger machines where lighter cobots fall short.

How far can the CR30H reach?

The working radius is 1800 mm, letting a single arm cover wide pallet patterns and reach into large machine enclosures from one base position.

How repeatable is the CR30H?

Repeatability is ±0.05 mm, which supports consistent layer stacking, fixture loading, and part placement across long production runs.

Is the CR30H a true collaborative robot?

Yes. The CR30H is a 6-axis collaborative robot (Standard Edition) with an IP67-rated body for demanding environments. As with any cobot, the appropriate safety configuration depends on a risk assessment of your specific application and payload.

How is the CR30H mounted and programmed?

The arm can be installed on the floor, a wall, or the ceiling to fit your cell, and connects to its controller via a 6 m cable. It offers 2 DI / 2 DO / 2 AO at the end effector for driving grippers and tooling.

Why Buy From Robo Mechanix

  • Specifications are drawn from verified Dobot documentation so you can spec your cell with confidence.
  • We support engineers and integrators with application guidance for palletizing, machine tending, and heavy handling.
  • US-based sales and support for the full Dobot collaborative robot lineup.

Compare it with the Dobot CR20A collaborative robot or the sensor-equipped Dobot CR30HT Touch Edition, or browse all Dobot robots.
