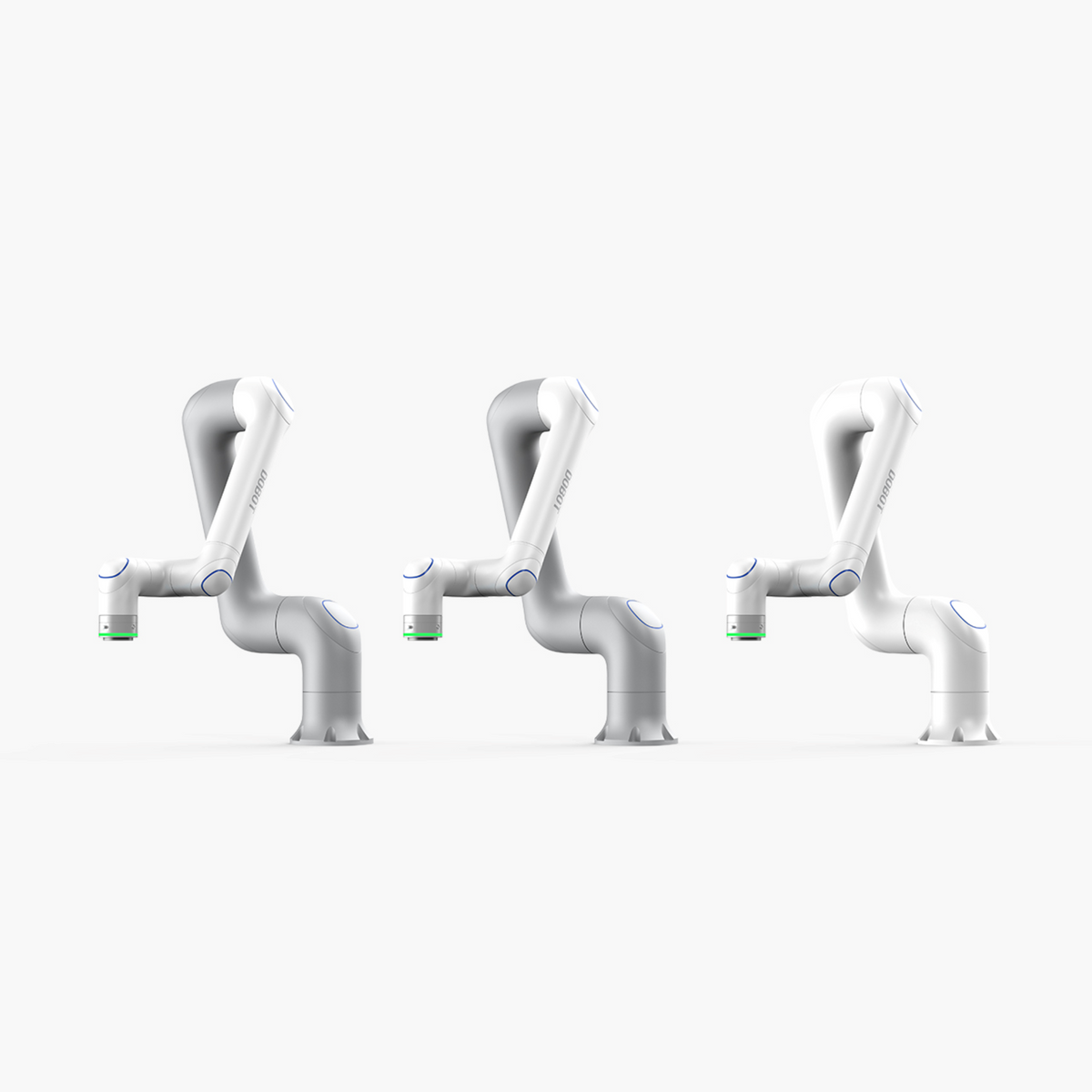

Dobot CR30HT Touch Edition collaborative robot arm handling a 30 kg load

Product Description

The Dobot CR30HT Touch Edition collaborative robot is a 30 kg, 6-axis cobot built around built-in joint torque sensors — the feature that defines the Touch Edition and separates it from the Standard CR30H. That force-sensing layer adds hand-guiding and true force control on top of a 30 kg payload and 1800 mm reach, so the arm can regulate contact force for precision assembly, polishing, and sensitive part handling instead of relying on position alone. It is built for automation engineers and integrators who need heavy-duty capacity without giving up the compliance of a genuine collaborative arm.

If you are evaluating the CR30H family, the Touch Edition is the model to specify when your process depends on controlled contact force; the Standard CR30H is the choice when position-only motion is enough.

Key Benefits

  • Control contact force on heavy, delicate parts — the built-in joint torque sensors let the arm regulate force while handling items such as battery modules and machined housings, where a rigid position-only robot would mar the surface or crush the part.
  • Carry loads lighter cobots cannot — at the 30 kg Touch tier the arm manages large castings, stacked battery packs, and heavy fixtures that 10–20 kg cobots have to hand off to a hard-automation cell or a manual lift.
  • Match throughput to the right joint — the wrist joints reach up to 300°/s (J4/J5/J6), while the base joints run at 150°/s (J1/J2) and 200°/s (J3); plan transfer cycles around the slower base-joint moves so takt estimates hold on the floor.
  • Hit tight tolerances repeatably — ±0.05 mm repeatability supports assembly and insertion work where placement accuracy drives yield.
  • Run in demanding environments — the IP67-rated manipulator stands up to the dust and splashing common in grinding, casting, and wash-down areas.
  • Fit into existing lines — dual Ethernet, RS485, and support for Modbus TCP/RTU, EtherNet/IP, and PROFINET let it talk to the PLCs and cell controllers you already run.

Ideal Applications

  • Force-controlled polishing, grinding, and surface finishing on metal or composite parts.
  • Precision assembly and insertion where contact force must stay within a set window.
  • Heavy machine tending and CNC load/unload up to 30 kg.
  • End-of-line palletizing and heavy pick-and-place across an 1800 mm work envelope.
  • Force-sensitive handling of parts such as battery modules and large castings that benefit from hand-guided teaching and compliant motion.

Specifications

Type Collaborative robot, Touch Edition
Degrees of freedom 6 (6-axis)
Payload 30 kg
Reach 1800 mm
Repeatability ±0.05 mm
Joint torque sensors Built-in (full-scale torque range on request for task sizing)
Weight 98.5 kg (arm)
Max joint speed J1/J2 150°/s, J3 200°/s, J4/J5/J6 300°/s
Power input 200–240 V AC, 50/60 Hz
Controller I/O 24 DI / 24 DO, 2 AI / 2 AO, dual Ethernet, RS485
Communication TCP/IP, Modbus TCP/RTU, EtherNet/IP, PROFINET
Ingress protection IP67 (manipulator)
Operating temperature 0°C to 50°C
Country of origin China

Frequently Asked Questions

What payload and reach does the Dobot CR30HT Touch Edition offer?

It handles a 30 kg payload across an 1800 mm reach, making it one of the heavier-duty options in the collaborative class for machine tending and palletizing.

How accurate and repeatable is it?

Repeatability is ±0.05 mm. The built-in joint torque sensors let the arm control contact force as well as position, which matters for assembly, insertion, and finishing work.

What does the built-in torque sensing do?

The Touch Edition uses built-in joint torque sensors to measure and regulate contact force at each joint, enabling hand-guided teaching and force-controlled motion. We can provide the full-scale torque range on request, so you can confirm it covers the contact forces your assembly or finishing task requires.

How fast does the CR30HT move?

Joint speeds are not uniform. The wrist joints (J4/J5/J6) reach up to 300°/s, while the larger base joints run slower at 150°/s (J1/J2) and 200°/s (J3). Because the base joints set the pace on longer moves, base your cycle-time estimates on the full motion path rather than the top wrist-joint figure.

What makes the Touch Edition different from the Standard CR30H?

The Touch Edition adds built-in joint torque sensors for hand-guiding and force-controlled tasks such as polishing and precision assembly. Mechanically it shares the 30 kg payload, 1800 mm reach, and joint speeds (150°/s at J1/J2, 200°/s at J3, up to 300°/s at J4/J5/J6) of the Standard Edition.

Is it suitable for dusty or wet environments?

Yes. The manipulator is IP67-rated and operates from 0°C to 50°C, so it tolerates the dust and splashing found in finishing, casting, and wash-down cells.

How does it integrate with existing controls?

The controller provides 24 DI / 24 DO, 2 AI / 2 AO, dual Ethernet, and RS485, and supports TCP/IP, Modbus TCP/RTU, EtherNet/IP, and PROFINET for connection to common PLCs and cell controllers.
