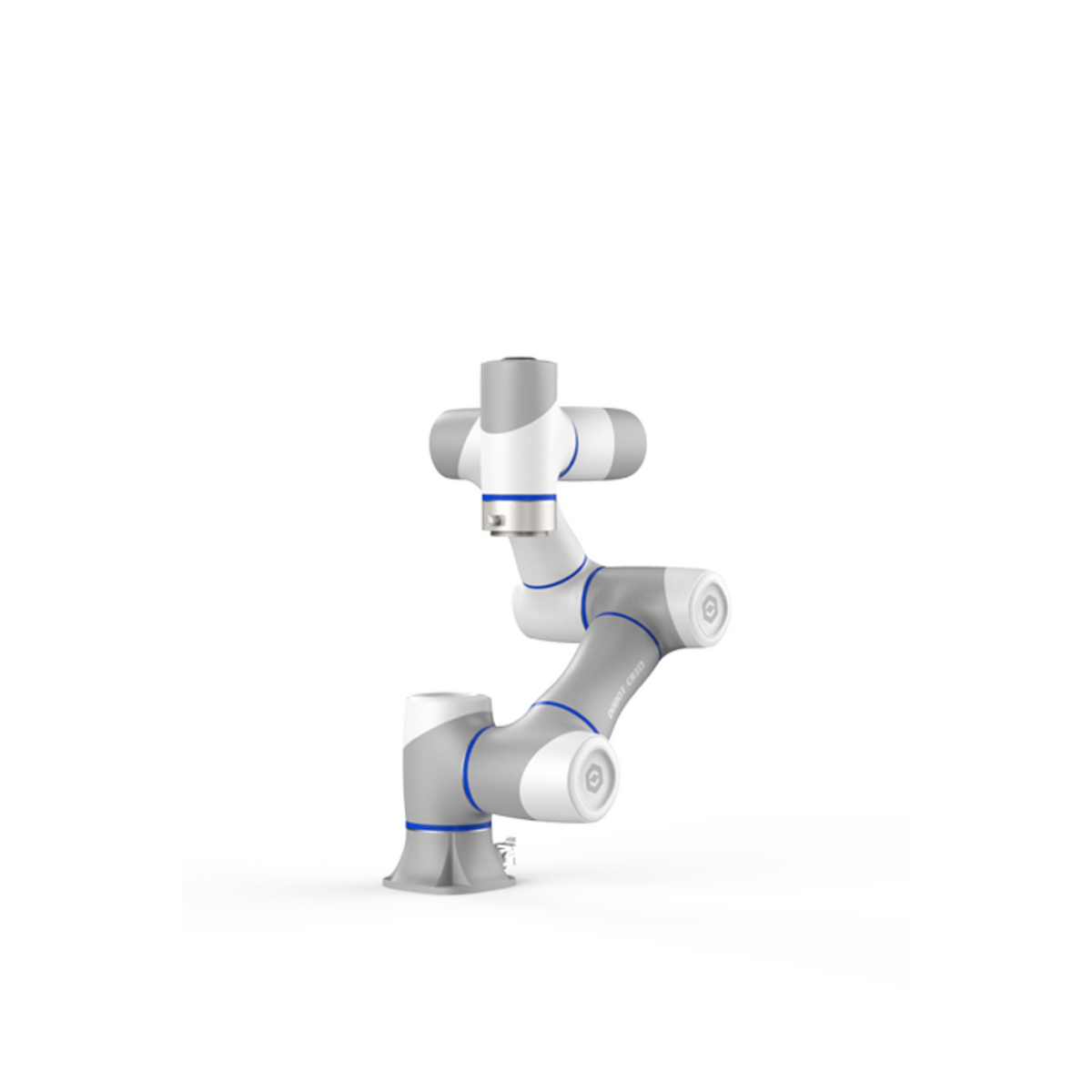

Dobot CR3A collaborative robot, a compact 6-axis cobot for benchtop precision assembly and electronics handling

Product Description

The Dobot CR3A collaborative robot is a compact 6-axis cobot built for tight-tolerance, light-duty precision work. With a 3 kg payload, 620 mm reach and ±0.02 mm repeatability, it is the smallest, shortest-reach member of the CR-A series, and its light payload and tight work envelope make it a natural fit for engineers and integrators automating electronics assembly and crowded benchtop cells. If you need accurate handling in a small footprint that can work safely alongside operators, the CR3A is purpose-built for the job.

Built around integrated joints in a compact arm, the CR3A holds its ±0.02 mm repeatability across repetitive electronics work such as connector insertion, PCB component placement and small test-fixture tending, keeping placement quality consistent cycle after cycle.

Key Benefits

  • Repeatable precision for fine assembly — ±0.02 mm repeatability lets the CR3A place small connectors, fasteners and PCB components accurately, cycle after cycle.
  • Right-sized reach for benchtop cells — a 620 mm reach covers a compact work envelope without crowding operators, ideal for tabletop pick-and-place and inspection stations.
  • Compact footprint for space-constrained cells — a small base and a 16.5 kg arm weight let the CR3A sit on a benchtop or fixture plate and be relocated between stations when your cell layout changes.
  • Light payload tuned to delicate parts — the 3 kg payload suits electronics, small parts handling and light screwdriving where heavier arms would be overkill.
  • Energy-efficient benchtop operation — a 120 W power draw keeps panel loads and running costs low, which helps when deploying several CR3A cells across a line.
  • Built to collaborative safety standards — compliance with ISO 13849-1, ISO 10218-1 and ISO/TS 15066 supports operation alongside people after a site risk assessment.
  • Fits existing automation — Modbus TCP, EtherNet/IP, EtherCAT and PROFINET plus controller digital I/O make it straightforward to tie into PLCs, grippers and line controllers.

Ideal Applications

  • Electronics and PCB assembly, including component placement and connector insertion.
  • Benchtop pick-and-place and small-parts handling in tight cells.
  • Light machine tending, testing and quality inspection stations.
  • Laboratory and sample-handling automation, including vial and tray transfer in research and QC settings.
  • Precision dispensing, light screwdriving and kitting tasks.

Specifications

Type Collaborative robot (6-axis)
Payload 3 kg
Reach 620 mm
Repeatability ±0.02 mm
Maximum TCP speed 3 m/s
Weight 16.5 kg
Power consumption 120 W
Communication / IO TCP/IP, Modbus TCP, EtherNet/IP, EtherCAT, PROFINET; 24 controller DI/DO
Ingress protection IP54
Safety ISO 13849-1, ISO 10218-1, ISO/TS 15066
Country of origin China

Frequently Asked Questions

What payload and reach does the Dobot CR3A offer?

The CR3A handles a 3 kg payload with a 620 mm reach, sizing it for light-duty, precision tasks in compact work envelopes rather than heavy lifting.

How precise is the CR3A?

It achieves ±0.02 mm repeatability, which supports accurate assembly, placement and handling of small and delicate components.

Is the CR3A safe to work next to people?

Yes. It is built to collaborative-robot safety standards ISO 13849-1, ISO 10218-1 and ISO/TS 15066 for operation alongside operators, subject to a proper application risk assessment.

How does it connect to my existing line and grippers?

The CR3A supports TCP/IP, Modbus TCP, EtherNet/IP, EtherCAT and PROFINET, plus 24 controller DI/DO channels, for integrating grippers, sensors and PLCs into your cell.

What environment can it run in?

It carries an IP54 ingress-protection rating, suiting typical indoor production and benchtop settings where light dust and occasional splashes are a concern.

Why Buy From Robo Mechanix

We are automation specialists who help you match the right cobot to your application. Our team can advise on payload and reach sizing so the CR3A fits your cell before you buy.

We support integration questions on connectivity, mounting and end-of-arm tooling, and we stay responsive after the sale.

Compare the step up in capability with the Dobot CR5A collaborative robot, or browse all Dobot robots.
