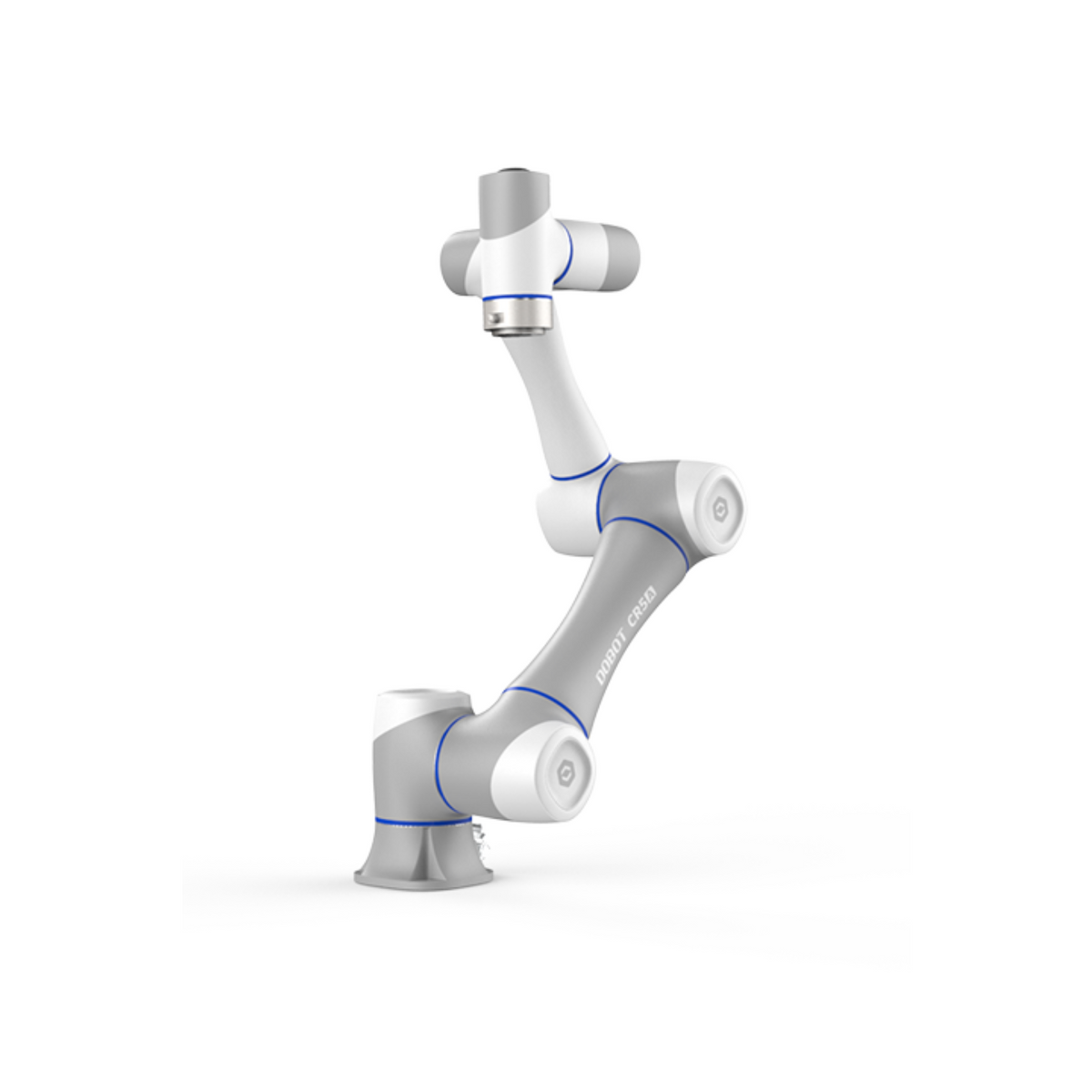

Dobot CR5A six-axis collaborative robot with 5 kg payload and 900 mm reach

Product Description

The Dobot CR5A collaborative robot is the versatile, general-purpose workhorse of the CR-A series: a 6-axis cobot that pairs a 5 kg payload with a 900 mm reach and ±0.02 mm repeatability. Sitting in the do-everything middle of the CR-A range, it is sized to cover everyday automation without over-speccing the cell, flexible enough for assembly, machine tending, pick-and-place and inspection. It is built for engineers and integrators who want one adaptable arm that can be redeployed across lines as production needs shift.

If you are weighing the CR5A against a smaller or larger sibling, the sizing rule is simple: choose it when your heaviest part plus gripper stays at or below 5 kg and the farthest pick-and-place point sits within a 900 mm radius of the base. Drop to the lighter CR3A when loads are consistently only a few kilograms and reach stays short; step up to the CR10A when payloads approach or exceed 5 kg or the cell needs a longer envelope than 900 mm.

Key Benefits

  • Tight, repeatable placement for assembly and inspection — ±0.02 mm repeatability keeps screwdriving, part insertion and camera-guided inspection consistent cycle after cycle.
  • Enough reach to tend most machines — the 900 mm working radius lets a single CR5A load and unload CNC mills, injection molders and test benches without repositioning the base.
  • Right-sized 5 kg payload for mixed work — 5 kg handles common grippers plus a workpiece, so the same arm covers pick-and-place, part transfer and very light single-item placement.
  • Steady cycle times between stations — brisk point-to-point tool moves transfer finished parts between a CNC door and an outfeed conveyor to help keep takt time predictable on repetitive tasks.
  • Collaborative operation at a shared workstation — a PLd (Category 3) safety-rated controller with power- and force-limiting lets the CR5A run at a shared assembly bench and hand parts to an operator, after a proper on-site risk assessment.
  • Fits existing PLC and line networks — Modbus, EtherNet/IP and PROFINET support let the CR5A drop into most factory controls and talk to conveyors, grippers and vision.

Ideal Applications

  • CNC, press and injection-molding machine tending across a 900 mm envelope.
  • Small-parts assembly, screwdriving and precision insertion needing ±0.02 mm repeatability.
  • Pick-and-place and part transfer with payloads up to 5 kg.
  • Packaging support and very light single-item tray loading within the 5 kg payload.
  • Camera-guided quality inspection and in-line testing.

Specifications

Specification Value
Type Collaborative robot (6-axis)
Degrees of freedom / Axes 6
Payload 5 kg
Reach 900 mm (working radius)
Repeatability ±0.02 mm
Weight 25 kg
Communication Modbus TCP/RTU, EtherNet/IP, PROFINET
I/O Digital and analog I/O at the tool flange and in the control box
Ingress protection IP54
Operating temperature 0°C to 50°C
Safety PLd (Category 3) safety-rated controller with power- and force-limiting
Country of origin China

Frequently Asked Questions

What payload can the Dobot CR5A handle?

The CR5A is rated for a 5 kg payload, enough for most grippers plus a mid-weight workpiece in assembly, pick-and-place and part transfer.

How far can the CR5A reach?

Its working radius is 900 mm, which covers most single-machine tending and bench-scale cells from a fixed base.

How precise is the CR5A?

Repeatability is ±0.02 mm, suitable for precision insertion, screwdriving and camera-guided inspection.

Is the CR5A safe to run next to operators?

Yes. It is a collaborative robot built around a PLd (Category 3) safety-rated controller with power- and force-limiting. As with any cobot, the final deployment still requires an on-site risk assessment for your specific application.

How is the CR5A programmed and what does it connect to?

The CR5A is programmed by hand-guiding (drag-to-teach) the arm through positions and by building routines in Dobot's graphical programming software, DobotStudio Pro, so no low-level coding is required. For integration, it supports Modbus TCP/RTU, EtherNet/IP and PROFINET, plus digital and analog I/O at the tool flange and in the control box, connecting to common PLCs, grippers, conveyors and vision systems.

Why Buy From Robo Mechanix

  • We are automation specialists focused on industrial and collaborative robots, not a general reseller.
  • We help you confirm the CR5A's 5 kg payload and 900 mm reach suit your heaviest part and farthest reach point before you buy, and steer you to the CR3A or CR10A if one of them sizes up better.
  • We support integration questions on mounting, I/O and network setup.
  • We respond quickly and stand behind what we sell.

Comparing the series? See the Dobot CR3A collaborative robot for lighter tasks, step up to the Dobot CR10A collaborative robot for heavier payloads, or browse all Dobot robots.
