Product Description

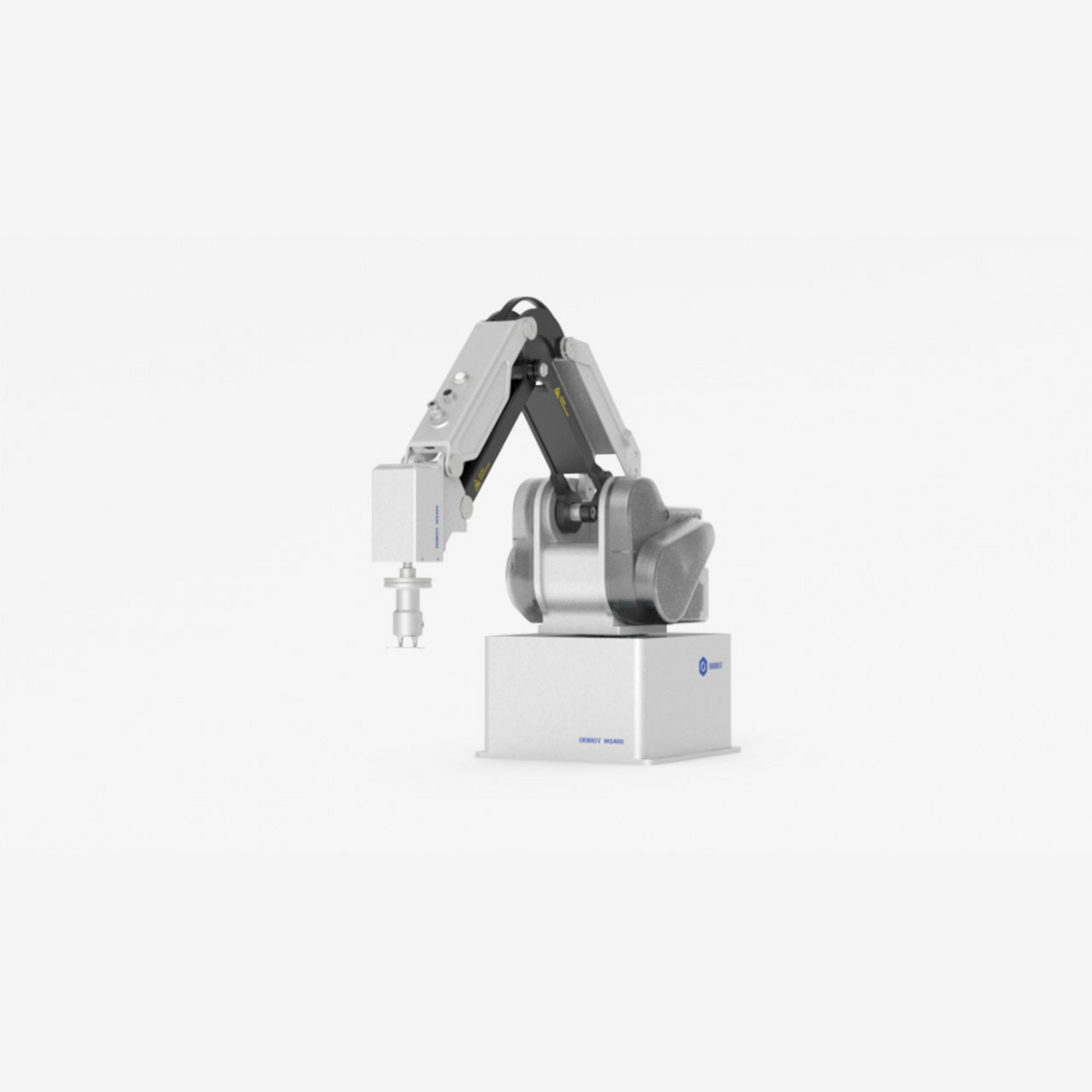

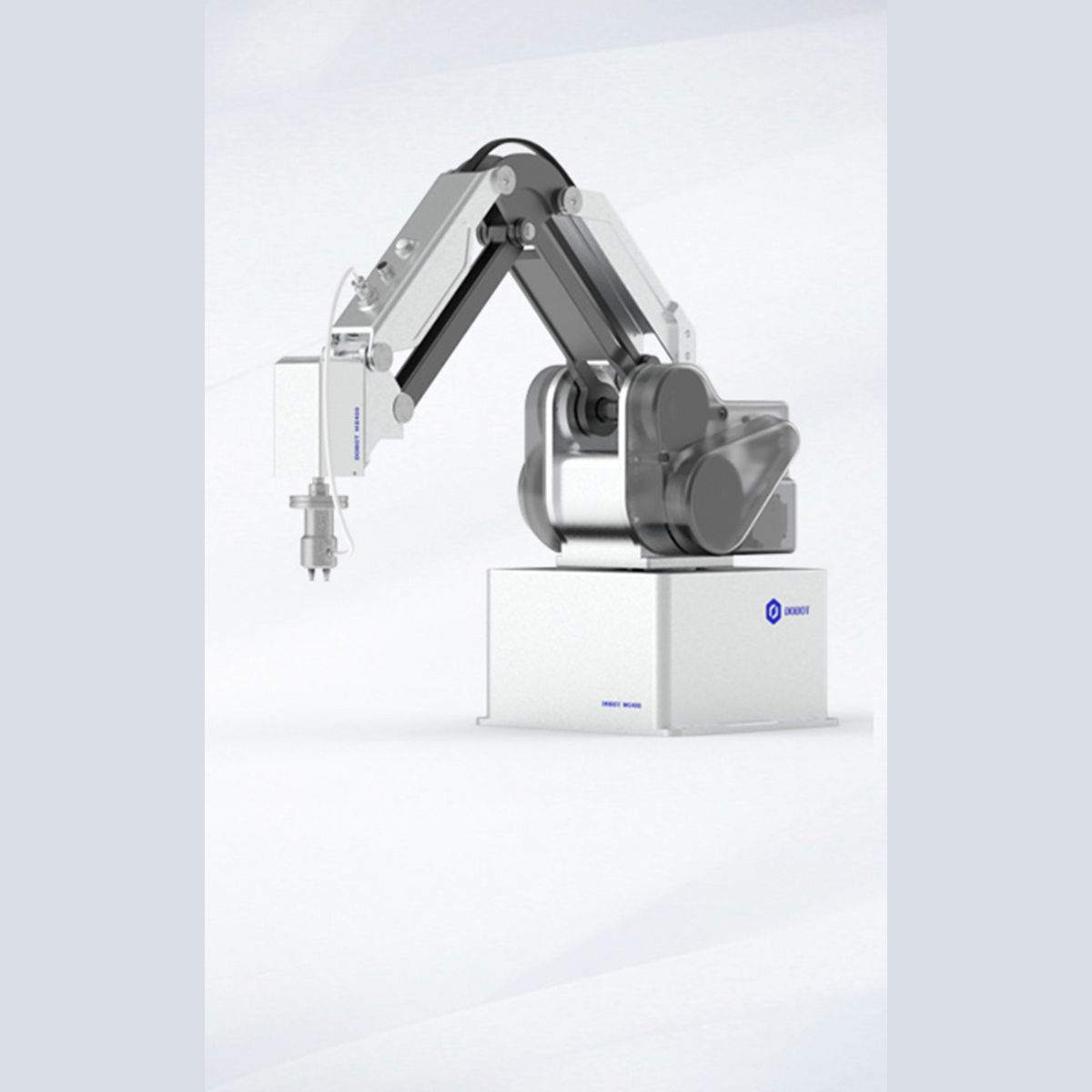

The Dobot MG400 is a 4-axis desktop robotic arm built for precise, small-batch flexible automation. It is made for engineers, labs, and lean production cells that need repeatable motion without a full industrial robot. The reason it stands out: it delivers ±0.05 mm (±0.002 in) repeatability from a base smaller than a sheet of A4 paper.

If you are comparing compact arms spec-for-spec, the MG400 leads with numbers that matter. It reaches a 440 mm (17.3 in) working radius, moves joints up to 300°/s, and weighs just 8 kg (17.6 lb) so one person can relocate it.

Verified Specs That Set the MG400 Apart

±0.05 mm Repeatability in a 440 mm Reach

The arm returns to each taught point within ±0.05 mm (±0.002 in), over a 440 mm (17.3 in) reach. That tight tolerance means consistent results in jobs like dispensing and small-part assembly, where drift ruins a batch.

0.5 kg Payload, 300°/s Joint Speed

It carries a 0.5 kg (1.1 lb) rated load (0.75 kg / 1.7 lb max) and drives joints up to 300°/s. That is enough speed and lift to cycle light parts quickly, so throughput stays high on repetitive runs.

Why a Compact Desktop Robotic Arm Wins on the Bench

A Footprint Smaller Than A4

The base measures just 190 × 190 mm (7.5 × 7.5 in) — smaller than an A4 sheet. You can mount it on an existing workbench instead of building a new cell, which saves floor space in tight labs and shops.

Drag-to-Teach Programming, No Coding to Start

You can physically guide the arm and record positions with drag-to-teach, so you program your first routine without writing code. Built-in collision detection adds a layer of protection: if the arm contacts an obstacle, it registers the impact and stops, which helps prevent damage to the arm, its tooling, and the part during teaching and unattended runs.

A note on collision detection: this is a built-in contact-detection feature, not a certified collaborative-robot (ISO/TS 15066) safety rating. Follow your own risk assessment, guarding, and site safety procedures when the arm operates near personnel.

Key Benefits

  • Repeatable results — because of ±0.05 mm (±0.002 in) repeatability, a 500-unit dispensing run lands adhesive on the same spot every time.
  • Fits any bench — because the base is 190 × 190 mm (7.5 × 7.5 in, smaller than A4), it drops onto a crowded electronics workstation without a dedicated robot table.
  • Fast first setup — because of drag-to-teach programming, a technician can teach a pick-and-place path by hand in minutes, no code required.
  • Protects tooling and workpieces — because of built-in collision detection, if the arm meets an unexpected obstacle mid-cycle it registers the contact and halts, so a jammed fixture or misfed part stops the run instead of crashing the end-effector.
  • Easy integration — because it speaks TCP/IP and Modbus TCP, it ties into PLCs and line software you already run.
  • One-person moves — because it weighs only 8 kg (17.6 lb), you can lift and redeploy it between stations without a crew.

Perfect For

  • Electronics and small-part assembly cells needing tight, repeatable placement.
  • Dispensing tasks — adhesive, sealant, or fluid — where ±0.05 mm consistency protects the batch.
  • Research labs and universities teaching automation and robotics hands-on.
  • Lean manufacturers running flexible, small-batch jobs that change often.
  • Prototyping benches where space is tight and an A4-sized footprint matters.

Dobot MG400 Specifications

Type Desktop robotic arm
Degrees of freedom 4 axes
Payload 0.5 kg rated (1.1 lb) / 0.75 kg max (1.7 lb)
Reach 440 mm (17.3 in) working radius
Repeatability ±0.05 mm (±0.002 in)
Weight 8 kg (17.6 lb)
Base footprint 190 × 190 mm (7.5 × 7.5 in, smaller than A4)
Joint ranges J1 ±160°, J2 −25° to 85°, J3 −25° to 105°, J4 ±360°
Max joint speed 300°/s
Power input 100–240 V AC, 50/60 Hz (48 V DC rated)
Power consumption 150 W
Communication TCP/IP, Modbus TCP
Installation Desktop / tabletop
Operating temperature 0 to 40 °C (32 to 104 °F)
Ingress protection IP20
Key features Drag-to-teach programming (no coding to start); built-in collision detection
Country of origin China

Frequently Asked Questions

How much can the Dobot MG400 lift?

It is rated for a 0.5 kg (1.1 lb) payload, with a 0.75 kg (1.7 lb) maximum.

What is the reach of the Dobot MG400?

The arm has a 440 mm (17.3 in) working radius.

Do you need to know how to code to program the MG400?

No. It supports drag-to-teach programming, so you can guide the arm by hand and record positions without writing code to get started.

How accurate is the Dobot MG400?

Its repeatability is ±0.05 mm (±0.002 in), so it returns to each taught point very consistently.

How big is the Dobot MG400's footprint?

The base is 190 × 190 mm (7.5 × 7.5 in) — smaller than an A4 sheet — and the arm weighs 8 kg (17.6 lb).

Why Buy From Robo Mechanix

  • Verified specs, published as-tested — every figure on this page (±0.05 mm repeatability, 440 mm reach, 0.5 kg payload, 190 × 190 mm base) comes straight from the manufacturer specification, not rounded-up marketing numbers.
  • Spec-matched buying guidance — talk to us before you order and confirm the reach, payload, and footprint fit your bench and your parts, so the MG400 is right the first time.
  • Integration-ready — the arm speaks TCP/IP and Modbus TCP, so it drops into the PLCs and line software you already run; our team can point you to the right interface for your setup.
  • Responsive technical support to help you spec, program, and integrate the arm.
  • Secure checkout on every order.
