Product Description

The BLUETTI B500K2 is the max-capacity expansion block in the line - 5,120Wh (5.12 kWh) of LiFePO4 storage in a single unit. It clips onto the BLUETTI Apex 300 (and other compatible stations) for partial, whole-home, or small-business backup, and it ships ready to run with the CA90 high-speed connector for the Apex 300 already in the box. Wall-mount it or roll it on a trolley; stack blocks when you need more.

Where a smaller block makes you chain several units together for real capacity, the B500K2 drops a full 5,120Wh in through one CA90 connection. It's the heaviest-hitting single block you can add to an Apex 300 system - and when you do want more, units stack toward 100kWh.

The Max-Capacity Block in the BLUETTI Lineup

The B500K2 is the big one. It packs 5,120Wh (5.12 kWh) into a single LiFePO4 enclosure - the maximum capacity BLUETTI offers in one expansion block. To put that number in perspective: it takes roughly twenty B500K2 blocks to reach BLUETTI's 100kWh ceiling, so one unit is about a twentieth of a maxed whole-home bank - a serious chunk of stored energy from a single drop-in block, not a trickle top-up. All of it lands through one CA90 connection to your Apex 300, in a single 99.21 lb (45 kg) enclosure measuring 20.47 x 12.87 x 12.15 in (520 x 327 x 308.5 mm) that you can bolt to a wall or wheel on a trolley.

B500K2 vs. the Smaller B300K2: Which Expansion Block to Choose

If you're weighing the B500K2 against the B300K2, the deciding factor is capacity per block. The B500K2 is the max-capacity option: a full 5,120Wh (5.12 kWh) of LiFePO4 storage added through a single CA90 connection to your Apex 300, in one 99.21 lb (45 kg) enclosure. Choose it when you want the most reserve from the fewest units - fewer blocks on the wall, fewer connections to manage, and a shorter path to a large whole-home or small-business bank that still scales toward 100kWh.

By BLUETTI's model numbering, the B300K2 is positioned as the lower-capacity, lighter companion block in the same expansion family - the one to reach for when the extra weight and footprint of the max-capacity unit aren't worth it for a smaller backup need. Choose the B500K2 for maximum stored energy in one drop-in; step down to the B300K2 if a lighter, lower-capacity block fits your load.

Key Benefits of the 5,120Wh Expansion Battery

  • A big reserve from one drop-in block - one B500K2 adds 5,120Wh (5.12 kWh) on a single CA90 connection. Picture a winter evening when the grid drops for your whole block: the fridge stays cold, the kids' bedroom lamps stay lit, and the router keeps the house online, all pulling from the one B500K2 you clipped onto your Apex 300 - how long they run depends on your station's inverter and the load, but it's one enclosure doing the work, not a cluster of smaller batteries.
  • Enough to carry a house or a storefront - stack blocks toward 100kWh. Think of a small coffee shop that can't afford to go dark: it lines several B500K2 units along the stockroom wall, building a bank that keeps the point-of-sale terminal, the espresso machine's controls, and the reach-in milk cooler on backup - and adds another block each time the business grows.
  • About a decade of daily use - 4,000+ cycles to 80% (up to 10 years). Even if you run it hard - charging off midday rooftop solar and drawing the house down on it every single evening - that daily charge-and-discharge routine still works out to roughly a decade before capacity eases to 80%.

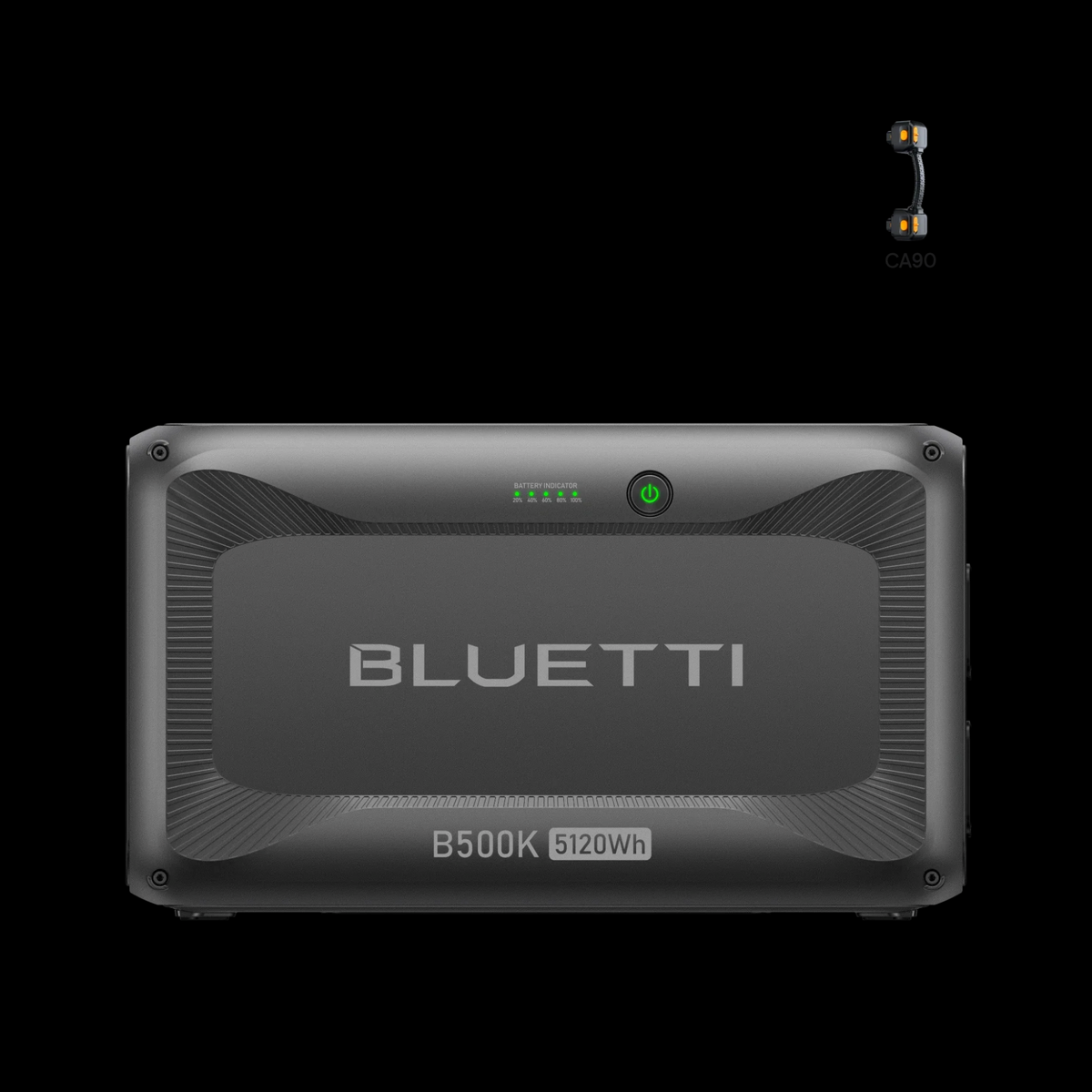

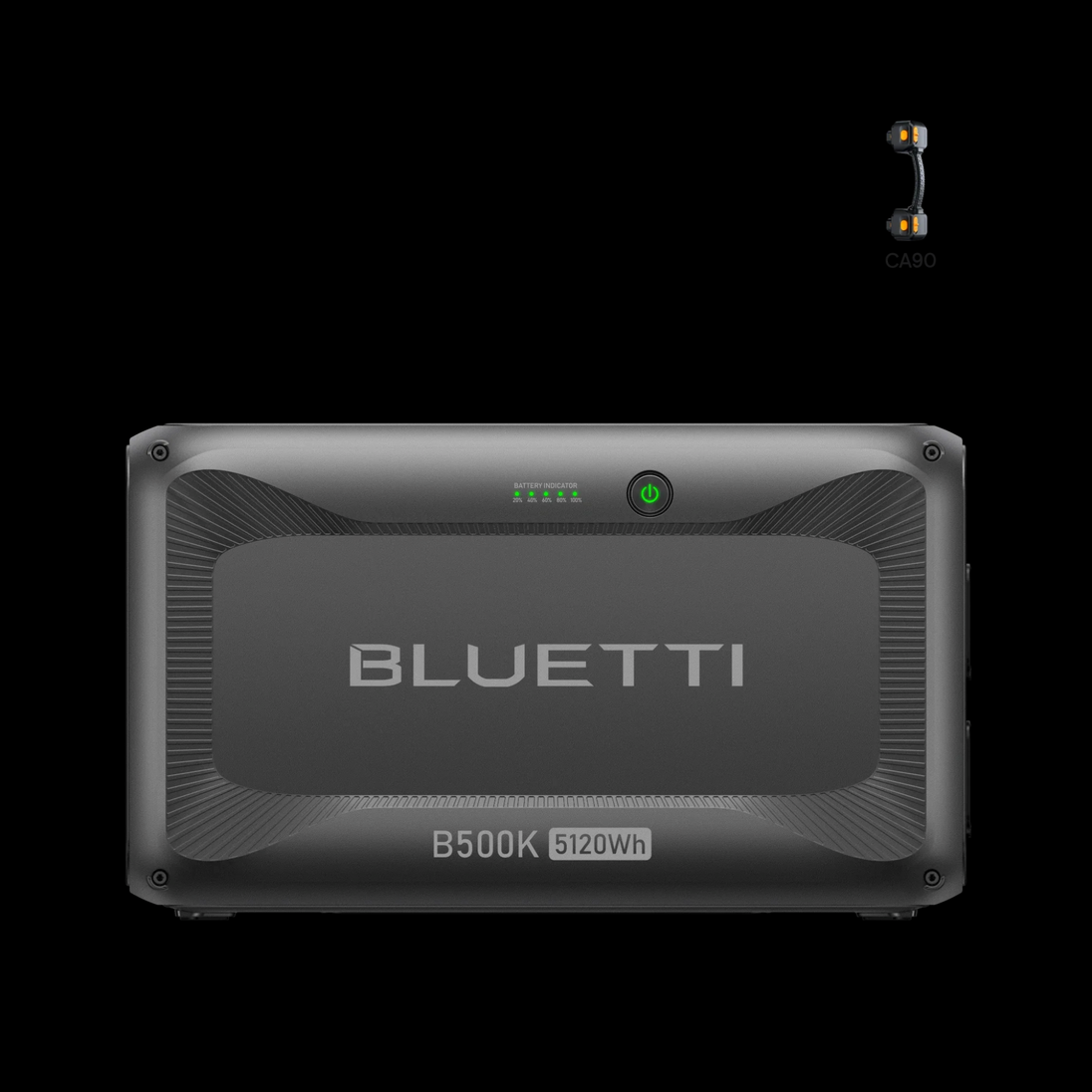

  • Connected the afternoon it lands - the CA90 high-speed connector is in the box. Unbox it next to your Apex 300 and the cable is already there; you're clipping it in that same afternoon instead of waiting on a separately ordered connector before your first backup test.
  • Fixed to the wall or rolling on a trolley - it's wall-mountable or trolley-compatible. Bolt it to the utility-room wall beside the breaker panel for a permanent install, or when you re-wire near the panel, pop the 99.21 lb block on a trolley and wheel it to wherever the work is.
  • Grows the BLUETTI gear you already own - works with the Apex 300, AC300, AC500, AC200L, and AC200MAX. Say you already run an AC500 for weekend cabin backup: wheel the B500K2 over, connect it, and add a full 5,120Wh of reserve before the next storm - no new power station required.

Perfect For

  • Homeowners adding whole-home or partial-home backup to a BLUETTI Apex 300.
  • Small businesses that need to keep essential equipment running through outages.
  • Off-grid and solar setups that need to bank large amounts of stored energy in as few blocks as possible.
  • Anyone scaling a BLUETTI system toward 100kWh of total capacity.

BLUETTI B500K2 Specifications

Capacity 5,120Wh (5.12 kWh)
Chemistry LiFePO4 (4,000+ cycles to 80%, up to 10 years)
Connector CA90 Battery Expansion Cable (included)
Max Expansion Scalable to 100kWh
Mounting Wall-mountable / trolley-compatible
Compatibility BLUETTI Apex 300, AC300, AC500, AC200L, AC200MAX (and upcoming)
Dimensions 20.47 x 12.87 x 12.15 in (520 x 327 x 308.5 mm)
Weight 99.21 lbs (45 kg)
Warranty 4 Years

Frequently Asked Questions

How much capacity does the BLUETTI B500K2 have?

The B500K2 holds 5,120Wh (5.12 kWh) in a single LiFePO4 block - the max-capacity expansion block in the line, so you add a big reserve through one connection instead of chaining several smaller batteries together. Paired with a BLUETTI Apex 300, that is a large energy reserve to help power household essentials like a fridge, lights, and Wi-Fi during an outage, with actual runtime depending on your paired station's inverter and the load you run.

Which stations is the B500K2 compatible with?

It connects to the BLUETTI Apex 300, AC300, AC500, AC200L, and AC200MAX (and upcoming models). That means you can expand a system you already own instead of buying a new power station.

What is the B500K2's cycle life and lifespan?

Its LiFePO4 cells are rated for 4,000+ cycles to 80% capacity, which works out to up to 10 years of use. That lets you cycle it daily for solar self-consumption or keep it on standby for backup without wearing it out quickly.

Can I expand beyond one B500K2?

Yes. You can stack units to scale total storage up to 100kWh for whole-home or small-business backup. Start with one B500K2 and add blocks as your energy needs grow.

Does the B500K2 include a connector cable?

Yes. It ships with the CA90 high-speed Battery Expansion Cable for the Apex 300, so it's ready to connect out of the box - no separate connector to source before your first install.

Why Buy the BLUETTI B500K2 From Robo Mechanix

  • Authorized BLUETTI dealer - every unit is genuine, factory-fresh, and fully warranty-eligible, backed by our US-based support team.
  • Robo Mechanix is a power-solutions specialist - we help you match the right expansion block and compatible station to your backup needs, whether that's the max-capacity B500K2 or a lighter block for a smaller load.
  • Ready to connect on arrival - every B500K2 includes the CA90 high-speed connector for the Apex 300, so there's no extra cable to track down before your first install.
  • Backed by BLUETTI's full 4-year warranty, for long-term peace of mind on a serious energy investment.
  • Expand the BLUETTI system you already own - compatible with the Apex 300, AC300, AC500, AC200L, and AC200MAX, so an existing station becomes a bigger backup bank without replacement.
  • Planning a larger bank? We'll help you map how many B500K2 blocks it takes to scale your home or storefront toward BLUETTI's 100kWh ceiling, and confirm the CA90 connection to your specific station before you order.
