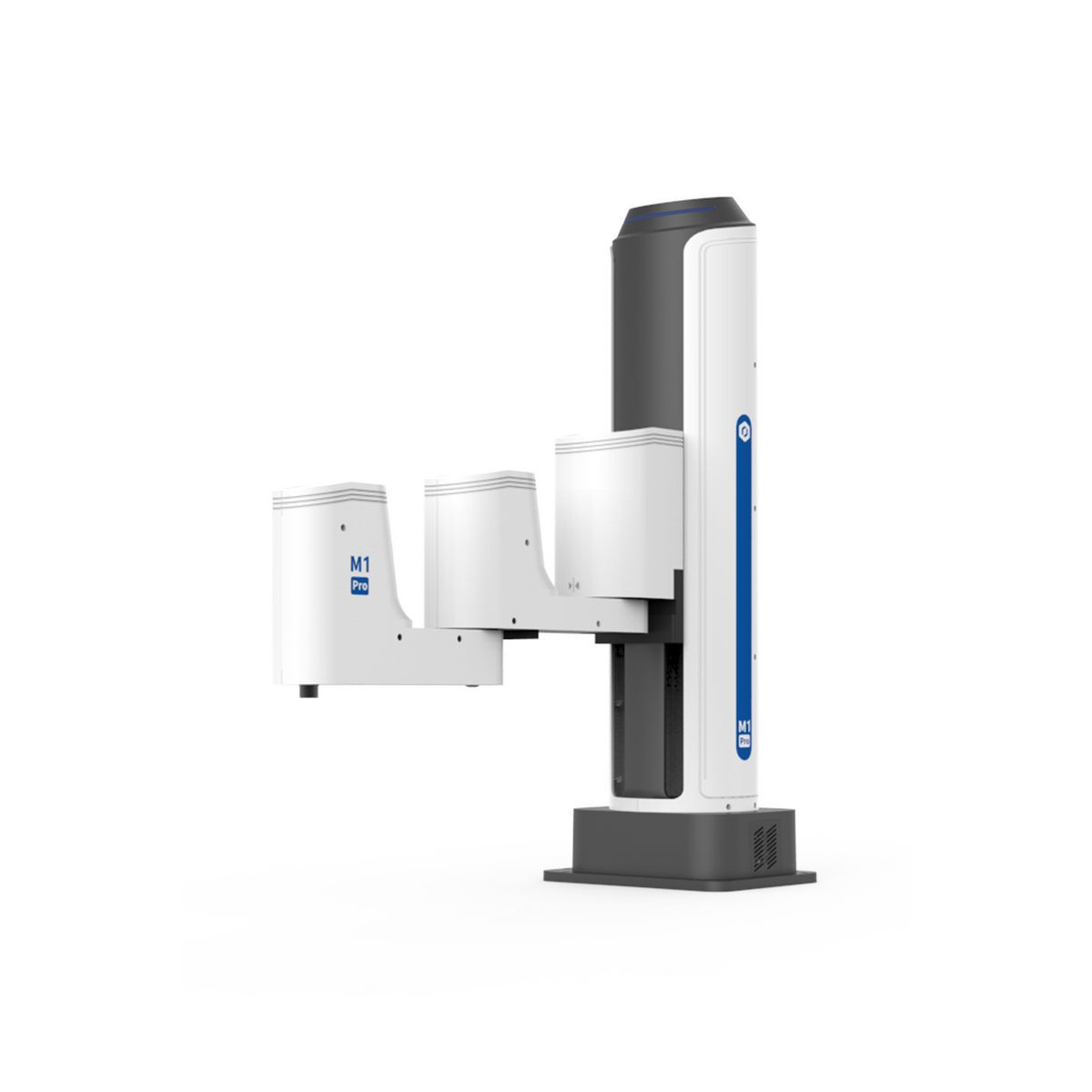

Dobot M1 Pro 4-axis SCARA robot, benchtop arm with arm-integrated controller, front view

Product Description

The Dobot M1 Pro SCARA robot is a compact 4-axis arm built to solve a specific production bottleneck: high-speed, high-precision pick-and-place in small and medium-sized factories that cannot justify a full industrial cell. If your line loses throughput to manual loading or inconsistent placement, this benchtop SCARA holds ±0.02 mm repeatability cycle after cycle. An all-in-one design folds the controller into the arm, so a single self-contained unit replaces the cabinet, wiring, and floor space a traditional robot demands.

It is the fast benchtop SCARA of the Dobot range, aimed at engineers, integrators, and plant managers who need a 4-axis workhorse rather than a 6-axis cobot.

Key Benefits

  • Protect part quality on every cycle — ±0.02 mm repeatability keeps placement tight for precision assembly, dispensing, and component insertion where a few microns decide pass or fail.
  • Raise throughput without a bigger footprint — joint speeds of 180°/s on J1/J2 and a top TCP speed of 2 m/s drive fast pick-and-place cycles, so a benchtop cell can keep pace with the manual stations it replaces.
  • Skip the control cabinet — the controller is built into the arm, so the M1 Pro installs from a single 100–240 V AC supply with no separate cabinet or inter-unit wiring to rack and route, cutting commissioning time for teams adding their first robot.
  • Fit tight workcells — a slim forearm and a compact 230 × 175 mm base let the M1 Pro work in crowded benchtops and reach around fixtures that block bulkier robots.
  • Keep operators protected on shared benches — built-in collision detection stops the arm on unexpected contact, so the M1 Pro can run close to staff without a full guarding cage.
  • Program the way your team works — both scripting and graphical programming are supported, so experienced integrators and shop-floor staff can build and adjust routines.

Ideal Applications

  • High-speed pick-and-place of small and medium components on benchtop lines, including tray-feed and conveyor handoffs.
  • SMT and solder-paste dispensing along accurate paths where repeatability drives yield.
  • Screw driving and precision component insertion that depend on ±0.02 mm repeatability.
  • Dispensing of adhesives, sealants, and fluids along controlled paths.
  • Machine tending and small-part sorting in compact factory cells.
  • First-step automation for small and medium manufacturers upgrading from manual stations.

Specifications

Type SCARA robot
Degrees of freedom 4 axes
Payload 1.5 kg
Reach (working radius) 400 mm
Repeatability ±0.02 mm
Weight 15.7 kg
Base footprint 230 × 175 mm
Joint ranges J1 ±85°, J2 ±130°, J3 (Z) 245 mm travel, J4 ±360°
Max joint speed J1/J2 180°/s, J3 1000 mm/s, J4 1000°/s
Max TCP speed 2 m/s
Power input 100–240 V AC, 50/60 Hz
Rated power Contact us to confirm (published figures vary)
Communication TCP/IP, Modbus TCP, Modbus RTU
Ingress protection IP20
Operating temperature 0–40 °C
Country of origin China

Frequently Asked Questions

Can the M1 Pro be mounted anywhere other than a benchtop?

The M1 Pro is built as a benchtop SCARA and mounts upright on its compact 230 × 175 mm base, bolted to a stable bench, table, or frame. For floor-standing, elevated, or non-standard orientations, contact our team to confirm the mounting and bracket options that suit your cell.

Does the 1.5 kg payload hold at full 400 mm reach?

The rated payload is 1.5 kg. As with any SCARA, the usable payload at full 400 mm extension depends on your target speed, acceleration, duty cycle, and the inertia of your end-effector and part. Share your cycle time and tooling and we will confirm the M1 Pro handles it within spec.

What is the Z-axis (J3) stroke and usable work height?

The vertical J3 axis provides 245 mm of Z travel at up to 1000 mm/s. Check your part stack-up, fixture height, and tool length against that stroke, and we can help you confirm usable work height for your application.

What end-effectors and I/O does the M1 Pro support?

The M1 Pro mounts grippers, vacuum, dispensing, and screwdriving tools on its tool interface. The digital I/O you can use, and whether your tooling needs an air supply, depend on the end-effector you choose — our team helps you spec the tool, wiring, and any pneumatic supply so the cell is production-ready.

How does it integrate with a PLC or higher-level software?

It communicates over TCP/IP, Modbus TCP, and Modbus RTU and is programmed with both scripting and graphical environments, so it ties cleanly into PLCs and line controllers. For application-level software integration beyond these protocols, contact us to confirm the current options.

Is it safe to run near people?

Built-in collision detection stops the arm on unexpected contact, so the M1 Pro can share a bench with operators. As with any robot, confirm safe operation with a site-specific risk assessment and add guarding where your application's speed, payload, or end-effector calls for it.

What are the operating environment limits?

The M1 Pro is rated for a 0–40 °C ambient operating range and carries IP20 ingress protection, so it is intended for clean, dry indoor factory and bench environments rather than wet, dusty, or washdown areas.

What warranty and lead time can I expect?

Warranty terms and current lead time vary by configuration and stock. Contact Robo Mechanix and we will confirm the warranty, availability, and delivery timeline before you order.

Why Buy From Robo Mechanix

  • We are automation specialists focused on industrial and collaborative robots, not a general catalog reseller.
  • We help you confirm the M1 Pro fits your payload, reach, and cycle-time targets before you commit.
  • Our team supports integration and deployment so your SCARA cell reaches production faster.
  • We help you spec end effectors and wire the M1 Pro into your line over TCP/IP, Modbus TCP, or Modbus RTU, with routines built in both script and graphical programming.

Comparing 4-axis and 6-axis options? See the Dobot Nova 2 collaborative robot or browse all Dobot robots.
